MPN

Infineon SRAM, CY7C1018DV33-10VXIT- 1 MB

Name: Infineon SRAM, CY7C1018DV33-10VXIT- 1 MB
Brand: Infineon
SKU: 193-8460
Price: 5.04 NZD
Availability: BackOrder

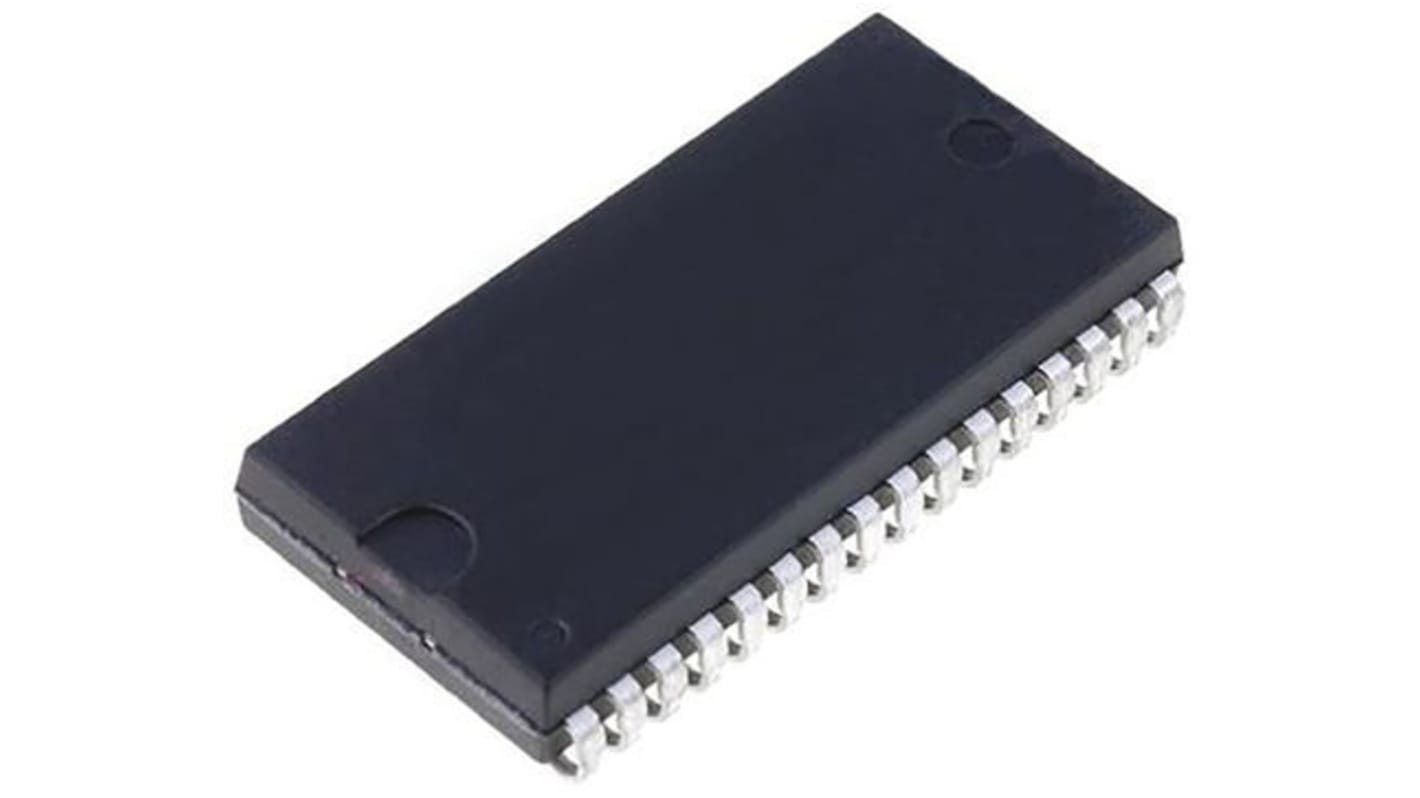

This image is representative of the product range

Bulk discount available

Subtotal (1 reel of 1000 units)*

$4,383.00

(exc. GST)

$5,040.00

(inc. GST)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
1000 - 4000	$4.383	$4,383.00
5000 +	$3.945	$3,945.00

*price indicative

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	SRAM
	Memory Size	1MB
	Organisation	128K x 8 bit
	Number of Words	128k
	Number of Bits per Word	8
	Maximum Random Access Time	10ns
	Minimum Supply Voltage	3V
	Timing Type	Asynchronous
	Mount Type	Through Hole
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Package Type	SOJ
	Maximum Operating Temperature	85°C
	Pin Count	32
	Height	2.62mm
	Length	20.57mm
	Width	7.42 mm
	Standards/Approvals	RoHS

	Select all
	Brand Infineon
	Product Type SRAM
	Memory Size 1MB
	Organisation 128K x 8 bit
	Number of Words 128k
	Number of Bits per Word 8
	Maximum Random Access Time 10ns
	Minimum Supply Voltage 3V
	Timing Type Asynchronous
	Mount Type Through Hole
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Package Type SOJ
	Maximum Operating Temperature 85°C
	Pin Count 32
	Height 2.62mm
	Length 20.57mm
	Width 7.42 mm
	Standards/Approvals RoHS

Pin- and function-compatible with CY7C1018CV33

High speed

tAA = 10 ns

Low Active Power

ICC = 60 mA @ 10 ns

Low CMOS Standby Power

ISB2 = 3 mA

2.0V Data retention

Automatic power-down when deselected

CMOS for optimum speed/power

Center power/ground pinout

Easy memory expansion with CE and OE options

Available in Pb-free 32-pin 300-Mil wide Molded SOJ
