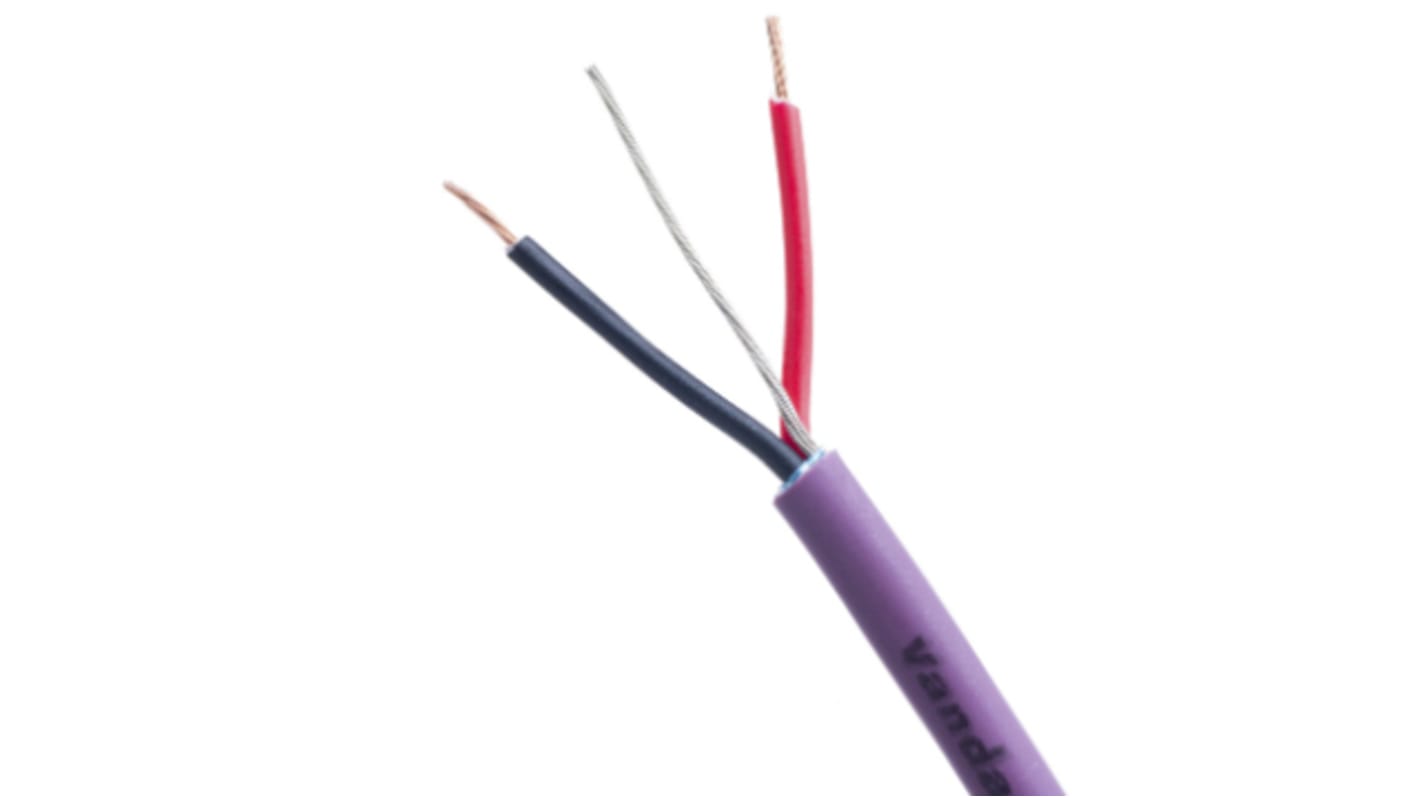

Van Damme Line level Low Voltage signal Cable, 0.22 mm² CSA Screened, 3.9mm od, 100m, Purple

View all Audio Cable

Subtotal (1 reel of 100 metres)*

$821.44

(exc. GST)

$944.66

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +$821.44$8.214

*price indicative

RS Stock No.:
444-1196
Mfr. Part No.:
278-401-000
Brand:
Van Damme
Find similar products by selecting one or more attributes.
Select all

Brand

Van Damme

Audio Cable Type

Line level Low Voltage signal Cable

Cross Sectional Area

0.22 mm²

Screened/Unscreened

Screened

Insulation Material

Polyolefin

Outer Diameter

3.9mm

Length

100m

Sheath Colour

Purple

American Wire Gauge

24 AWG

Capacitance Core To Core

50pF/m

Screen Type

Aluminium/PET Foil

Size of Strands

0.2 mm

Conductor Material

Oxygen Free Copper

Core Strands

7/0.2 mm

Characteristic Impedance

110 Ω

Sheath Material

PVC

Conductor Resistance

90 Ω/km

Number of Strands

7

Cable Shape

Twisted Pair

COO (Country of Origin):
IT

Purple Series Digilog LSZH Cable


Single pair configuration
Suitable for analogue balanced audio use
Also suitable for DMX512, RS422, Midi and timecode data transmissions
High purity oxygen free copper conductors
