Deutsch, DT Automotive Connector Male Grey Flange 6 Way Crimp Termination DT06-6S-C015
- RS Stock No.:
- 183-9091
- Mfr. Part No.:
- DT06-6S-C015
- Brand:
- Deutsch

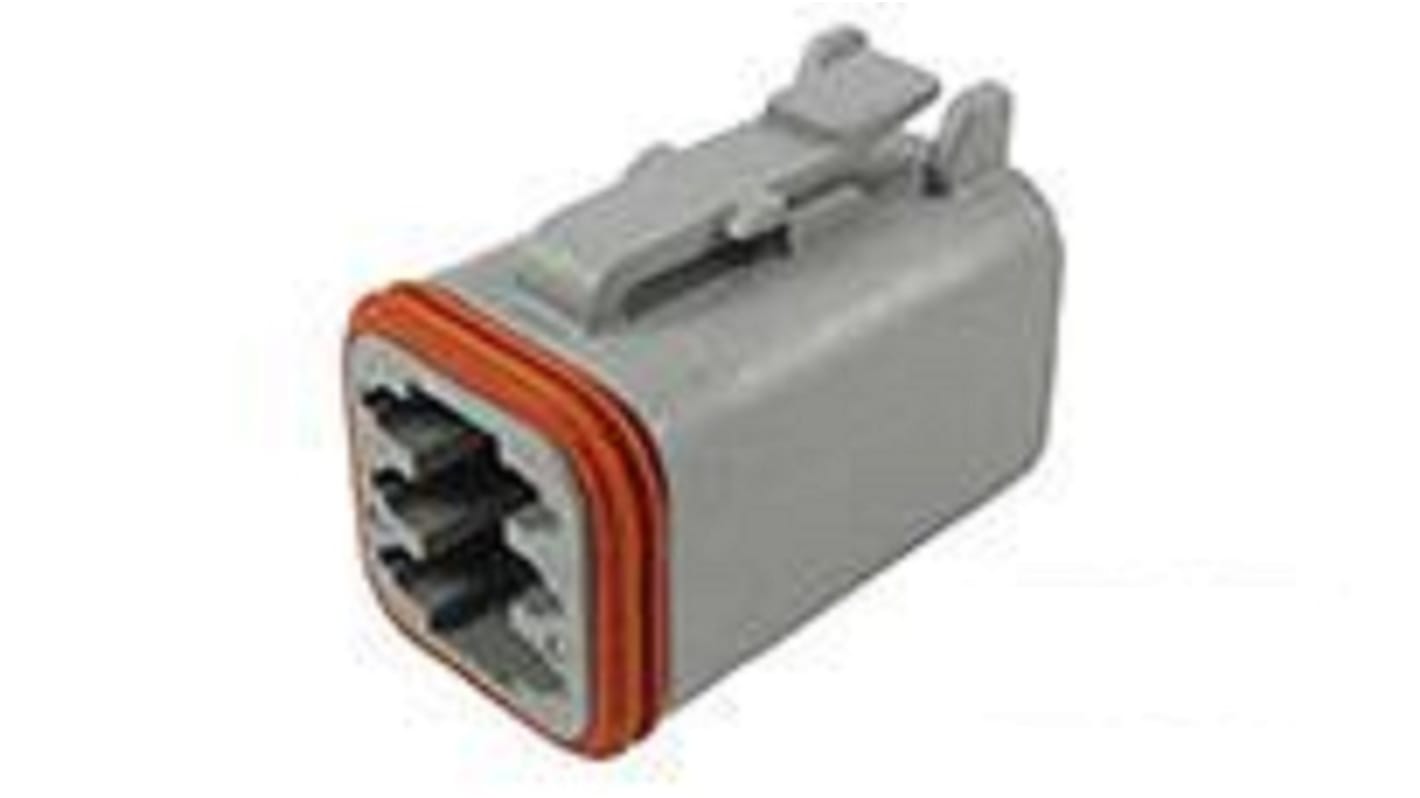

This image is representative of the product range
Bulk discount available
View bulk pricing optionSubtotal (1 bag of 900 units)*
$3,567.60
(exc. GST)
$4,103.10
(inc. GST)
Stock information currently inaccessible - Please check back later
- RS Stock No.:
- 183-9091
- Mfr. Part No.:
- DT06-6S-C015
- Brand:
- Deutsch
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deutsch | |
| Product Type | Automotive Connector | |
| Sub Type | Plug Housing | |
| Number of Contacts | 6 | |
| Termination Type | Crimp | |
| Current | 13A | |
| Gender | Male | |
| Number of Rows | 2 | |
| Mount Type | Flange | |
| Series | DT | |
| Cord Included | No | |
| Colour | Grey | |
| IP Rating | IP68 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Depth | 30.94mm | |
| Height | 22.63mm | |
| Width | 18.19mm | |
| Standards/Approvals | EU ELV, EU RoHS | |
| Housing Material | Polyamide | |
| Contact Plating | Steel with Zinc | |
| Select all | ||
|---|---|---|
Brand Deutsch | ||
Product Type Automotive Connector | ||
Sub Type Plug Housing | ||
Number of Contacts 6 | ||
Termination Type Crimp | ||
Current 13A | ||
Gender Male | ||
Number of Rows 2 | ||
Mount Type Flange | ||
Series DT | ||
Cord Included No | ||
Colour Grey | ||
IP Rating IP68 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Depth 30.94mm | ||
Height 22.63mm | ||
Width 18.19mm | ||
Standards/Approvals EU ELV, EU RoHS | ||
Housing Material Polyamide | ||
Contact Plating Steel with Zinc | ||
RoHS Status: Exempt
DEUTSCH DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 DEUTSCH contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating.
