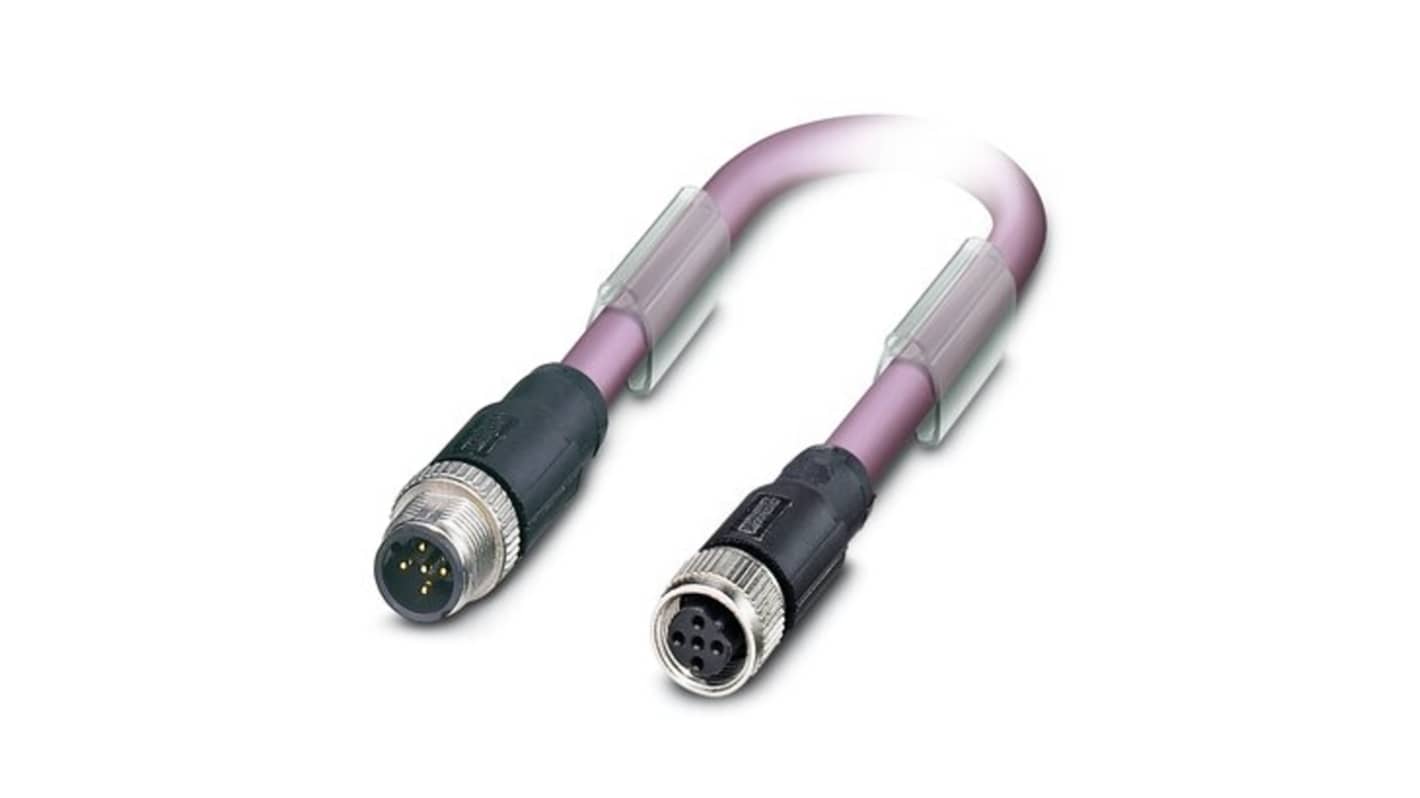

Phoenix Contact Bus Bus Cable, 2 Cores, 0.25mm² 24 AWG, Screened, 10 m, Red Polyurethane Sheath
- RS Stock No.:
- 269-028
- Mfr. Part No.:
- 1507395
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
$216.40
(exc. GST)
$248.86
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Stocked by manufacturer
- Ready to ship from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $216.40 |
*price indicative
- RS Stock No.:
- 269-028
- Mfr. Part No.:
- 1507395
- Brand:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Bus Cable | |
| Series | Bus | |
| Number of Cores | 2 | |
| Conductor Material | Tin Plated Copper | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Red | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 6.7mm | |
| Cable Length | 10m | |
| Voltage | 300V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | UL AWM Style 21198 (80°C/300 V), UL 1581, Section 9.3 (FT1), Section 9.1 (HFT/FT2), Section 1100 and UL 2556, Section 1060 and UL 2556, IEC 60332-1-2, Halogen-free according to IEC 60754-1 | |
| Hazardous Area Certification | No | |
| Cable CSA | 0.25mm² | |
| American Wire Gauge | 24AWG | |
| Fire Behaviour | Self-Extinguishing, hardly inflammable, Flame resistance according to IEC | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Bus Cable | ||
Series Bus | ||
Number of Cores 2 | ||
Conductor Material Tin Plated Copper | ||
Jacket Material Polyurethane | ||
Jacket Colour Red | ||
Screened/Unscreened Screened | ||
Outside Diameter 6.7mm | ||
Cable Length 10m | ||
Voltage 300V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals UL AWM Style 21198 (80°C/300 V), UL 1581, Section 9.3 (FT1), Section 9.1 (HFT/FT2), Section 1100 and UL 2556, Section 1060 and UL 2556, IEC 60332-1-2, Halogen-free according to IEC 60754-1 | ||
Hazardous Area Certification No | ||
Cable CSA 0.25mm² | ||
American Wire Gauge 24AWG | ||
Fire Behaviour Self-Extinguishing, hardly inflammable, Flame resistance according to IEC | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Bus system cable offers robust connectivity for PROFIBUS applications, designed to meet the demands of modern industrial environments. Its high-performance specifications, including a transmission speed of up to 12 Mbps, ensure reliable and efficient data transfer over extended distances.
Low bending radius for flexible installation options in confined spaces
Constructed with materials that support extended usage in harsh conditions
Compliance with stringent environmental regulations reinforces its sustainability credentials
