Phoenix Contact SAC Bus Cable, 3 Cores, 0.5 to 0.75 mm² 18 AWG, Screened, 2 m, Blue Polyvinyl Chloride Sheath
- RS Stock No.:
- 270-211
- Mfr. Part No.:
- 1419092
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
$75.15
(exc. GST)
$86.42
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 03 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | $75.15 |
| 10 + | $69.14 |
*price indicative
- RS Stock No.:
- 270-211
- Mfr. Part No.:
- 1419092
- Brand:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Product Type | Bus Cable | |
| Number of Cores | 3 | |
| Conductor Material | Tin Plated Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Blue | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 7.5 mm | |
| Cable Length | 2m | |
| Voltage | 48 V ac, 60 V dc | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | cULus Listed, EAC-RoHS | |
| Hazardous Area Certification | No | |
| Cable CSA | 0.5 to 0.75 mm² | |
| American Wire Gauge | 18AWG | |
| Fire Behaviour | Flame resistance according to UL | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Product Type Bus Cable | ||
Number of Cores 3 | ||
Conductor Material Tin Plated Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Blue | ||
Screened/Unscreened Screened | ||
Outside Diameter 7.5 mm | ||
Cable Length 2m | ||
Voltage 48 V ac, 60 V dc | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals cULus Listed, EAC-RoHS | ||
Hazardous Area Certification No | ||
Cable CSA 0.5 to 0.75 mm² | ||
American Wire Gauge 18AWG | ||
Fire Behaviour Flame resistance according to UL | ||
- COO (Country of Origin):
- PL

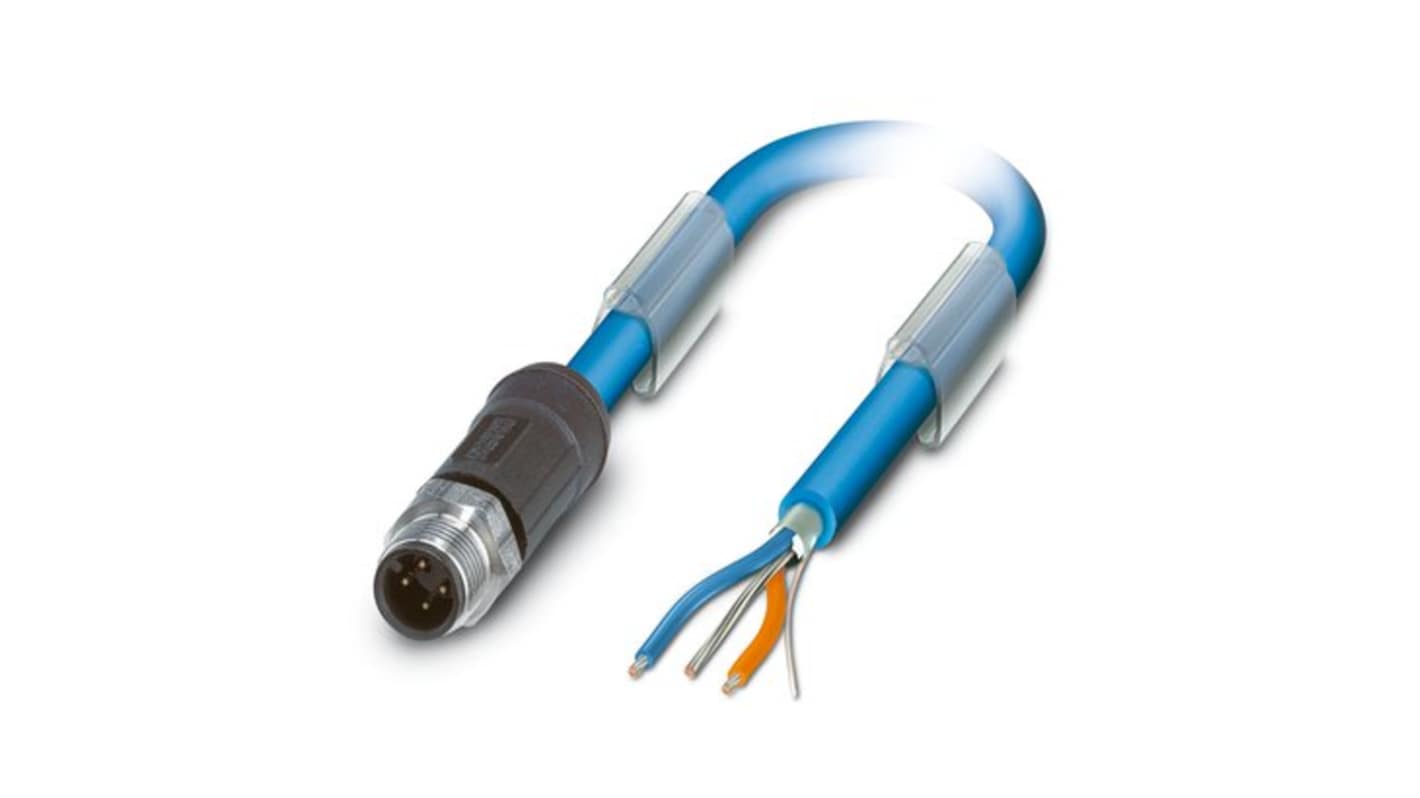

The Phoenix Contact Bus system cable is engineered to deliver exceptional performance in PROFIBUS PA applications, specifically designed for use in circuits with high intrinsic safety protection. With a durable and shielded construction, it supports effective signal transmission over distances of up to 2 metres. Its M12 straight plug ensures a secure fit, making it ideal for demanding industrial environments.
Ideal for connection in Ex rated areas ensuring safety compliance
Robust cable structure provides excellent resistance to bending and physical stress
Environmentally friendly adhering to EU RoHS and REACH regulations
