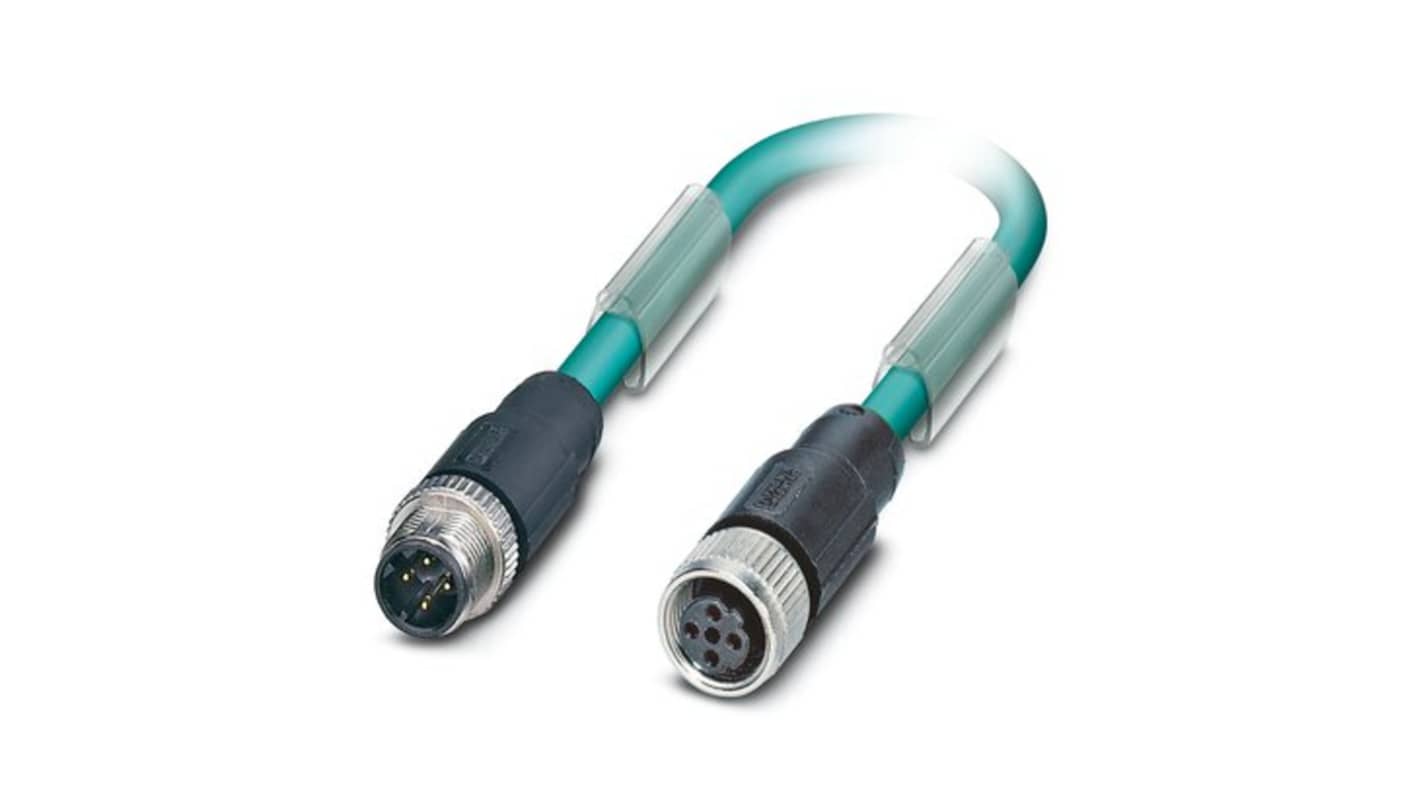

Phoenix Contact NBC Bus Cable, 4 Cores, 2 x 2 x 0.14 mm² 26 AWG, Screened, 2 m, Blue Polyurethane Sheath
- RS Stock No.:
- 280-817
- Mfr. Part No.:
- 1569537
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
$129.83
(exc. GST)
$149.30
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | $129.83 |
| 10 + | $119.44 |
*price indicative
- RS Stock No.:
- 280-817
- Mfr. Part No.:
- 1569537
- Brand:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Bus Cable | |
| Series | NBC | |
| Number of Cores | 4 | |
| Conductor Material | Bare Copper Wire | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Blue | |
| Screened/Unscreened | Screened | |
| Cable Length | 2m | |
| Outside Diameter | 6.7 mm | |
| Voltage | 100 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | IEC 60332-1-2, EN 50288-2-2, UL VW1, UL AWM Styl20963, IEC 60754-1 | |
| Cable CSA | 2 x 2 x 0.14 mm² | |
| Hazardous Area Certification | No | |
| American Wire Gauge | 26AWG | |
| Fire Behaviour | Flame Retardant | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Bus Cable | ||
Series NBC | ||
Number of Cores 4 | ||
Conductor Material Bare Copper Wire | ||
Jacket Material Polyurethane | ||
Jacket Colour Blue | ||
Screened/Unscreened Screened | ||
Cable Length 2m | ||
Outside Diameter 6.7 mm | ||
Voltage 100 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals IEC 60332-1-2, EN 50288-2-2, UL VW1, UL AWM Styl20963, IEC 60754-1 | ||
Cable CSA 2 x 2 x 0.14 mm² | ||
Hazardous Area Certification No | ||
American Wire Gauge 26AWG | ||
Fire Behaviour Flame Retardant | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Bus system cable is specifically designed for Ethernet applications, ensuring reliable data transmission within industrial environments. Its robust construction includes a flexible CAT5 specification, providing optimum performance at 100 Mbps. Additionally, the cable is halogen-free and features a durable PUR outer sheath, suited for challenging conditions.
High quality connectors ensure secure connections under challenging conditions
Operating temperature range supports both fixed and flexible installations
Low weight per km facilitates easier handling and installation
