Si8920AC-IP Skyworks Solutions Inc, Current Shunt Monitor Single Differential 8-Pin DIP
- RS Stock No.:
- 901-3967
- Mfr. Part No.:
- Si8920AC-IP
- Brand:
- Skyworks Solutions Inc

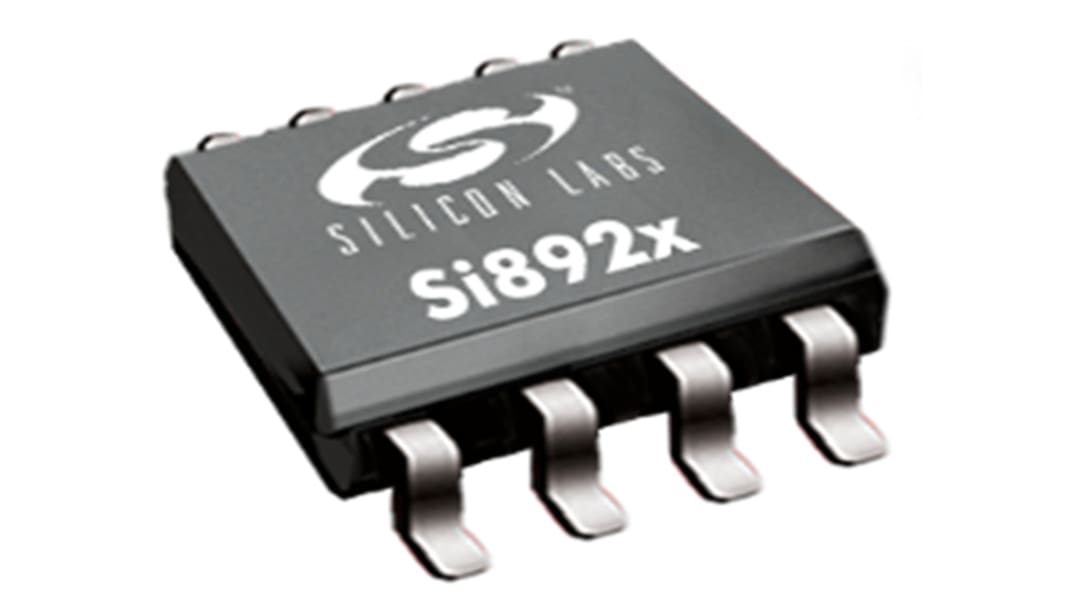

This image is representative of the product range
View all Current Sensing Amplifiers
On back order for despatch 17/04/2024, delivery within 7 working days from despatch date.
Price (ex. GST) Each (In a Pack of 2)
$11.71
(exc. GST)
$13.47
(inc. GST)
| units | Per unit | Per Pack* |
| 2 - 12 | $11.71 | $23.42 |
| 14 - 24 | $11.50 | $23.00 |
| 26 + | $10.925 | $21.85 |
| *price indicative | ||
Packaging Options:
- RS Stock No.:
- 901-3967
- Mfr. Part No.:
- Si8920AC-IP
- Brand:
- Skyworks Solutions Inc
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
Si8920 Isolated Amplifier for Current Shunt Measurement
The Si8920 is a galvanically isolated analogue amplifier. Their low voltage and differential input is ideal for measuring voltage across a current shunt resistor or for any place where a sensor must be isolated from the control system.
Output is a differential analogue signal amplified by either 8.1x or 16.2x. The very low signal delay allows control systems to respond quickly to fault conditions or changes in load. Low offset and gain drift ensure that accuracy is maintained over the entire operating temperature range.
High common mode transient immunity means that the Si8920 will deliver accurate measurements even in the presence of high power switching like would be found in a motor drive system or inverter.
To help evaluate the Si8920 there is a dedicated development kit available - SI8920ISO-KIT (RS 9026806). It is populated with the Si8920BC-IP and enables quick connection to a shunt resistor.
Output is a differential analogue signal amplified by either 8.1x or 16.2x. The very low signal delay allows control systems to respond quickly to fault conditions or changes in load. Low offset and gain drift ensure that accuracy is maintained over the entire operating temperature range.
High common mode transient immunity means that the Si8920 will deliver accurate measurements even in the presence of high power switching like would be found in a motor drive system or inverter.
To help evaluate the Si8920 there is a dedicated development kit available - SI8920ISO-KIT (RS 9026806). It is populated with the Si8920BC-IP and enables quick connection to a shunt resistor.
The Si8920 is available in 4 variants:
Si8920AC-IP (RS 901-3967) with an input range of ±100 mV in a Gull-Wing DIP-8 package
Si8920BC-IP (RS 901-3976) with an input range of ±200 mV in a Gull-Wing DIP-8 package
Si8920AD-IS (RS 901-3979) with an input range of ±100 mV in a SOIC-16 package
Si8920BD-IS (RS 901-3973) with an input range of ±200 mV in a SOIC-16 package
Si8920AC-IP (RS 901-3967) with an input range of ±100 mV in a Gull-Wing DIP-8 package
Si8920BC-IP (RS 901-3976) with an input range of ±200 mV in a Gull-Wing DIP-8 package
Si8920AD-IS (RS 901-3979) with an input range of ±100 mV in a SOIC-16 package
Si8920BD-IS (RS 901-3973) with an input range of ±200 mV in a SOIC-16 package
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Current Sensing Amplifiers have a voltage output that is proportional to the volt drop across a very low value resistor, usually in a high-current power rail. Hence they measure the current flowing in that power rail.
Specifications
| Attribute | Value |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3 → 5.5 V |
| Number of Channels per Chip | 2 |
| Output Type | Differential |
| Maximum Supply Current | 5.5 mA |
| Mounting Type | Through Hole |
| Package Type | DIP |
| Pin Count | 8 |
| Dimensions | 9.9 x 6.6 x 3.44mm |
| Height | 3.44mm |
| Length | 9.9mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Width | 6.6mm |
| Minimum Operating Supply Voltage | 3 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
