Fluke Networks FI-525 Single & Multimode Fibre Optic Test Kit

RS Stock No.:: 123-6403
Distrelec Article No.:: 300-76-114
Mfr. Part No.:: FI-525
Brand:: Fluke Networks

Fluke Networks FI-525 Single & Multimode Fibre Optic Test Kit

Subtotal (1 unit)*

$7,071.27

(exc. GST)

$8,131.96

(inc. GST)

FREE delivery for orders over $60.00 ex GST

Stocked by manufacturer

Ready to ship from 06 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$7,071.27

*price indicative

RS Stock No.:: 123-6403
Distrelec Article No.:: 300-76-114
Mfr. Part No.:: FI-525
Brand:: Fluke Networks

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke Networks
	Product Type	Fibre Tester
	Cable Type	Single & Multimode
	Equipment Type	Fibre Optic Test Kit
	Connector Type	ST, LC Port, LC, SC, FC Port
	Resolution	1 μm
	Interface Type	USB
	Magnification	200
	Plug Type	3-Pin (Global)
	Battery Type	Nickel-Metal Hydride
	Battery Life	3h
	Standards/Approvals	IEC 62133, IEC 610101 3rd Edition
	Height	39mm
	Width	80mm
	Length	140mm
	Weight	275g
	Power Source	Mains, Battery
	Includes	Adapter, Cord, Display, Battery
	Model Number	FI-525
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	40°C

	Select all
	Brand Fluke Networks
	Product Type Fibre Tester
	Cable Type Single & Multimode
	Equipment Type Fibre Optic Test Kit
	Connector Type ST, LC Port, LC, SC, FC Port
	Resolution 1 μm
	Interface Type USB
	Magnification 200
	Plug Type 3-Pin (Global)
	Battery Type Nickel-Metal Hydride
	Battery Life 3h
	Standards/Approvals IEC 62133, IEC 610101 3rd Edition
	Height 39mm
	Width 80mm
	Length 140mm
	Weight 275g
	Power Source Mains, Battery
	Includes Adapter, Cord, Display, Battery
	Model Number FI-525
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 40°C

Fluke Fibre Tester, 1 μm Resolution, 275 g Weight - FI-525

This Fibre tester is a portable Fibre optic inspection probe designed to inspect singlemode and multimode Fibres and assess connector endfaces in the field. It operates from mains or battery power and connects via USB for data transfer, making it suitable for on-site checks in automation, electronics, electrical and mechanical maintenance contexts.

Features & Benefits

• High-resolution microscope delivers 1 μm detail for precise assessment
• Multiple connector support inspects ST, LC, SC and FC Interfaces
• Ni‑MH battery probe provides 3 h continuous and 6 h typical runtime
• Lightweight portable design weighs 275 g for easy transport
• USB Interface enables straightforward data export and archiving
• Compliant battery chemistry meets IEC 62133 and IEC 61010‑1 Third Edition standards

Applications

• Suitable for inspecting Fibre optic connector endfaces during installation
• Ideal for maintenance checks on singlemode and multimode links
• Used for troubleshooting connector contamination in control panels
• Can be used for pre‑commissioning inspection of industrial Fibre runs

What connector types can it inspect?

It is compatible with standard ST, LC, SC and FC connector interfaces via supplied adapters for common endface examinations.

How is power managed between mains and battery?

The unit accepts mains power and includes a Ni‑MH battery

the probe runtime is specified as 3 h continuous operation and typically 6 h under normal use.

What environmental limits apply to operation?

The probe is rated to operate between 0 °C and 40 °C and is designed for typical indoor industrial environments.

What is included with the tool for immediate use?

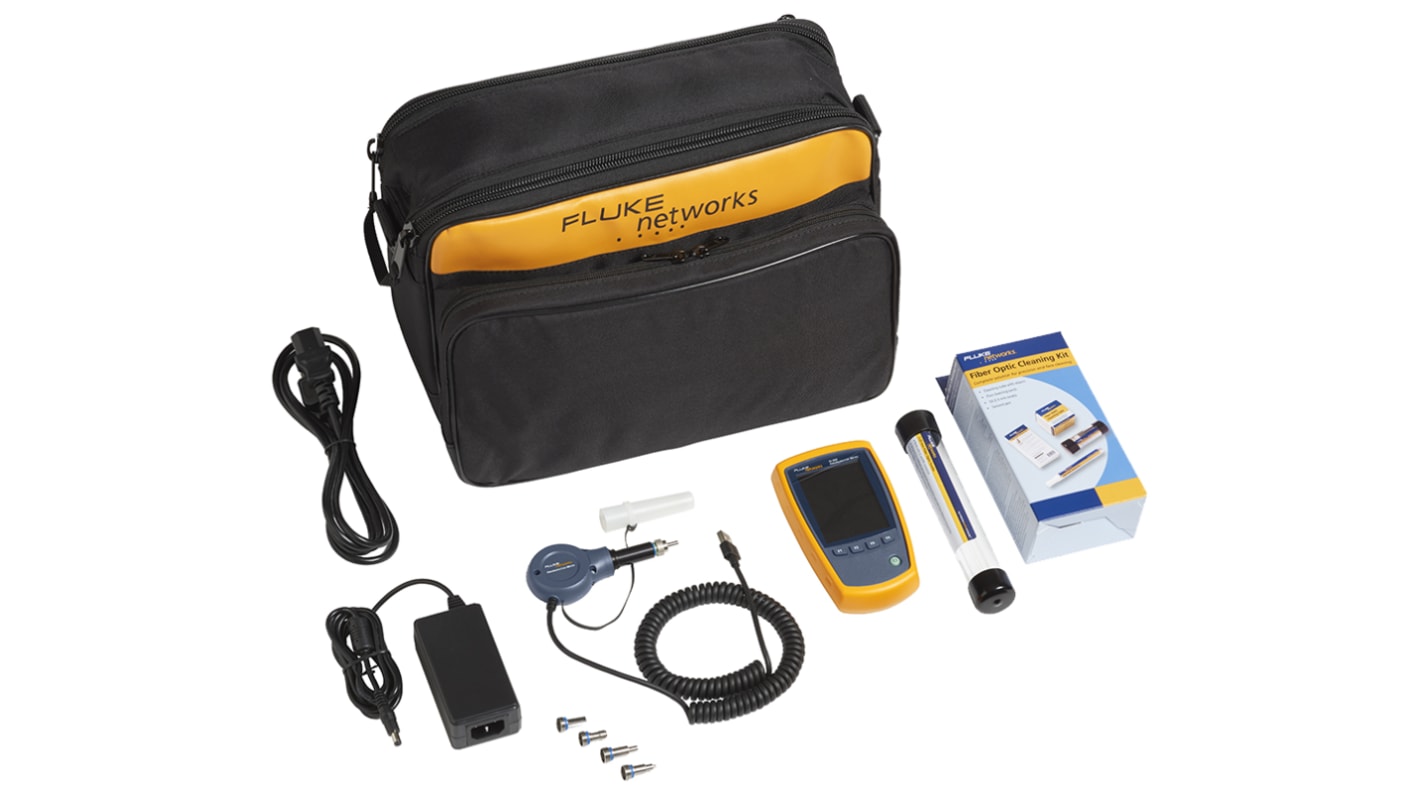

Supplied items include adapters, cord, display and battery so it can be deployed without additional accessories.
