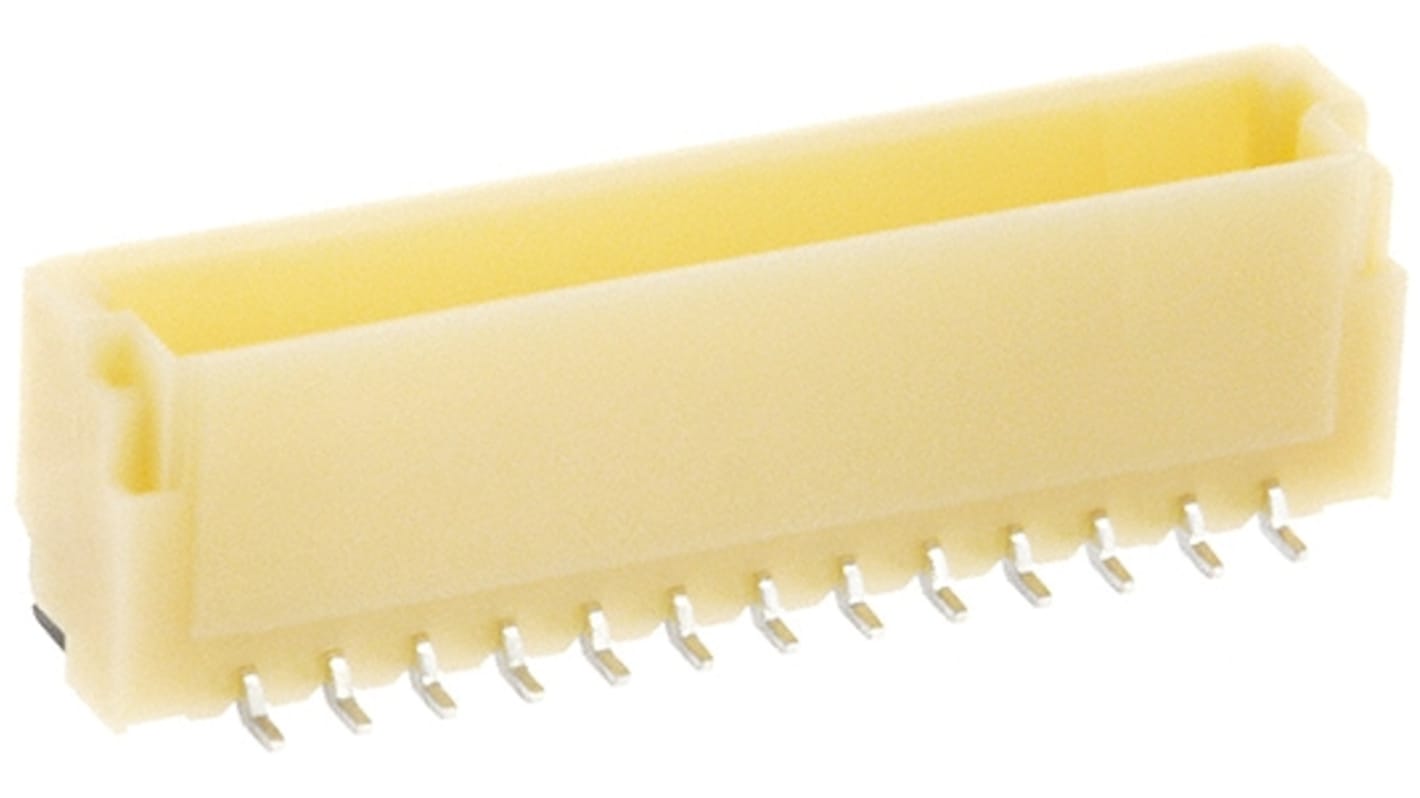

JST SH Series Straight Surface PCB Header, 13 Contact(s), 1 mm Pitch, 1 Row, Shrouded

RS Stock No.:: 502-2639
Mfr. Part No.:: BM13B-SRSS-TB-(LF)(SN)
Brand:: JST

JST SH Series Straight Surface PCB Header, 13 Contact(s), 1 mm Pitch, 1 Row, Shrouded

Bulk discount available

Subtotal (1 pack of 5 units)*

$9.33

(exc. GST)

$10.73

(inc. GST)

FREE delivery for orders over $60.00 ex GST

Limited stock

100 left, ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 120	$1.866	$9.33
125 - 495	$1.84	$9.20
500 +	$1.728	$8.64

*price indicative

RS Stock No.:: 502-2639
Mfr. Part No.:: BM13B-SRSS-TB-(LF)(SN)
Brand:: JST

Specifications

Technical data sheets

Legislation and Compliance

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	JST
	Product Type	PCB Header
	Series	SH
	Pitch	1mm
	Current	1.0A
	Number of Contacts	13
	Number of Rows	1
	Orientation	Straight
	Shrouded/Unshrouded	Shrouded
	Connector System	Wire-to-Board
	Mount Type	Surface
	Contact Plating	Tin
	Contact Material	Copper Alloy
	Termination Type	Solder
	Minimum Operating Temperature	0°C
	Row Pitch	1mm
	Standards/Approvals	No
	Voltage	50 V

	Select all
	Brand JST
	Product Type PCB Header
	Series SH
	Pitch 1mm
	Current 1.0A
	Number of Contacts 13
	Number of Rows 1
	Orientation Straight
	Shrouded/Unshrouded Shrouded
	Connector System Wire-to-Board
	Mount Type Surface
	Contact Plating Tin
	Contact Material Copper Alloy
	Termination Type Solder
	Minimum Operating Temperature 0°C
	Row Pitch 1mm
	Standards/Approvals No
	Voltage 50 V

SH Series

COO (Country of Origin):: JP

JST SH Series Straight Surface PCB Header, 13 Contact(s), 1 mm Pitch, 1 Row, Shrouded
