Phoenix Contact SAC Bus Cable, 4 Cores, 0.38 mm² 26 AWG, Screened, 2 m, Black Polyurethane Sheath
- RS Stock No.:
- 270-314
- Mfr. Part No.:
- 1550999
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
$111.51
(exc. GST)
$128.24
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | $111.51 |
| 10 + | $102.58 |
*price indicative
- RS Stock No.:
- 270-314
- Mfr. Part No.:
- 1550999
- Brand:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Product Type | Bus Cable | |
| Number of Cores | 4 | |
| Conductor Material | Tin Plated Copper | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Black | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 5.2 mm | |
| Cable Length | 2m | |
| Voltage | 60 V dc, 48 V ac | |
| Minimum Operating Temperature | -25°C | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | REACH, EU RoHS, EAC-RoHS, cULus | |
| Hazardous Area Certification | No | |
| Cable CSA | 0.38 mm² | |
| Fire Behaviour | UL 94HB | |
| American Wire Gauge | 26AWG | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Product Type Bus Cable | ||
Number of Cores 4 | ||
Conductor Material Tin Plated Copper | ||
Jacket Material Polyurethane | ||
Jacket Colour Black | ||
Screened/Unscreened Screened | ||
Outside Diameter 5.2 mm | ||
Cable Length 2m | ||
Voltage 60 V dc, 48 V ac | ||
Minimum Operating Temperature -25°C | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals REACH, EU RoHS, EAC-RoHS, cULus | ||
Hazardous Area Certification No | ||
Cable CSA 0.38 mm² | ||
Fire Behaviour UL 94HB | ||
American Wire Gauge 26AWG | ||
- COO (Country of Origin):
- PL

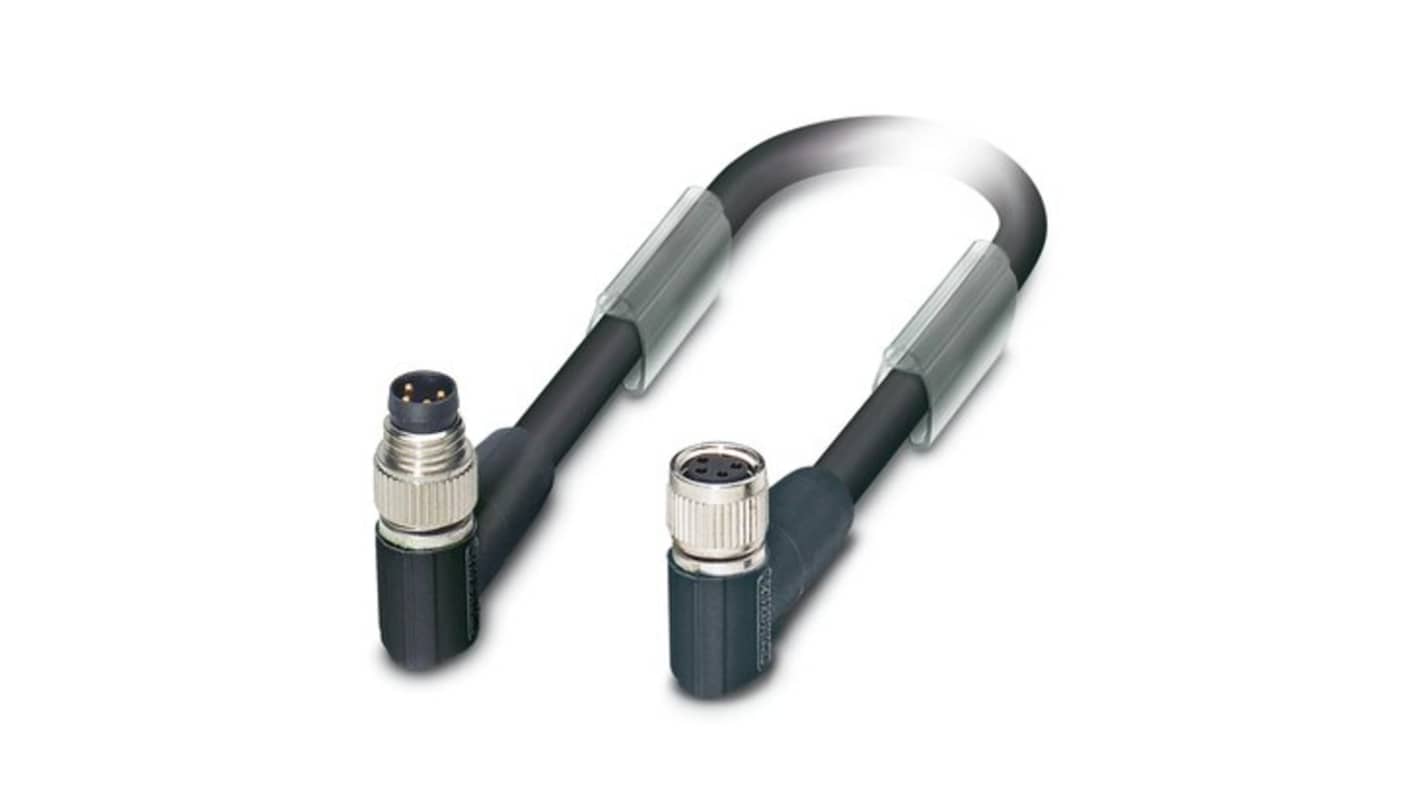

The Phoenix Contact Bus system cable meticulously designed for industrial applications. This exceptional preassembled data cable excels in delivering reliable signal and power transmission, making it an ideal choice for INTERBUS systems. Its robust construction features a halogen-free PUR sheath that ensures durability in demanding environments, while the angled M8 connectors facilitate ease of installation in tight spaces.
IP65/IP67 ratings protect against environmental factors
Shielded construction reduces interference for stable signal transmission
Lightweight yet robust design aids in ease of handling and installation
